Directional Passive Detection Portable Drone Detector Uav Alarm
El precio original era: $6,000.00.$4,000.00El precio actual es: $4,000.00.

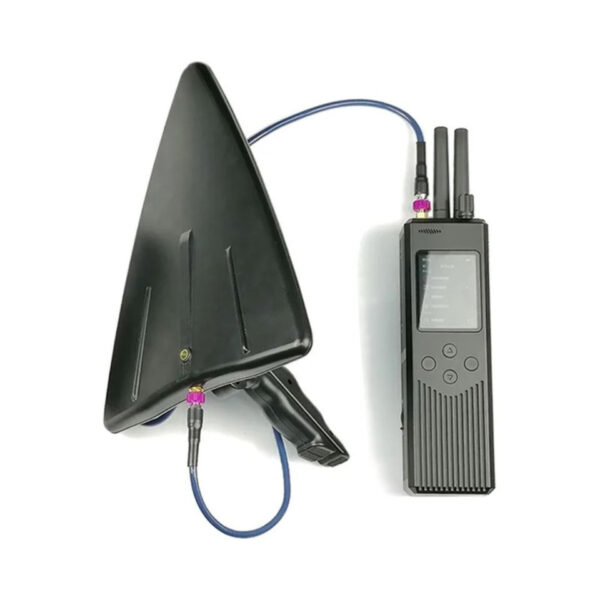

This portable UAV detection & direction finding equipment is used for drones detection and direction finding. Based on spectrum sensing and artificial intelligence technology, it identifies and classifies the UAV’s image transmission links

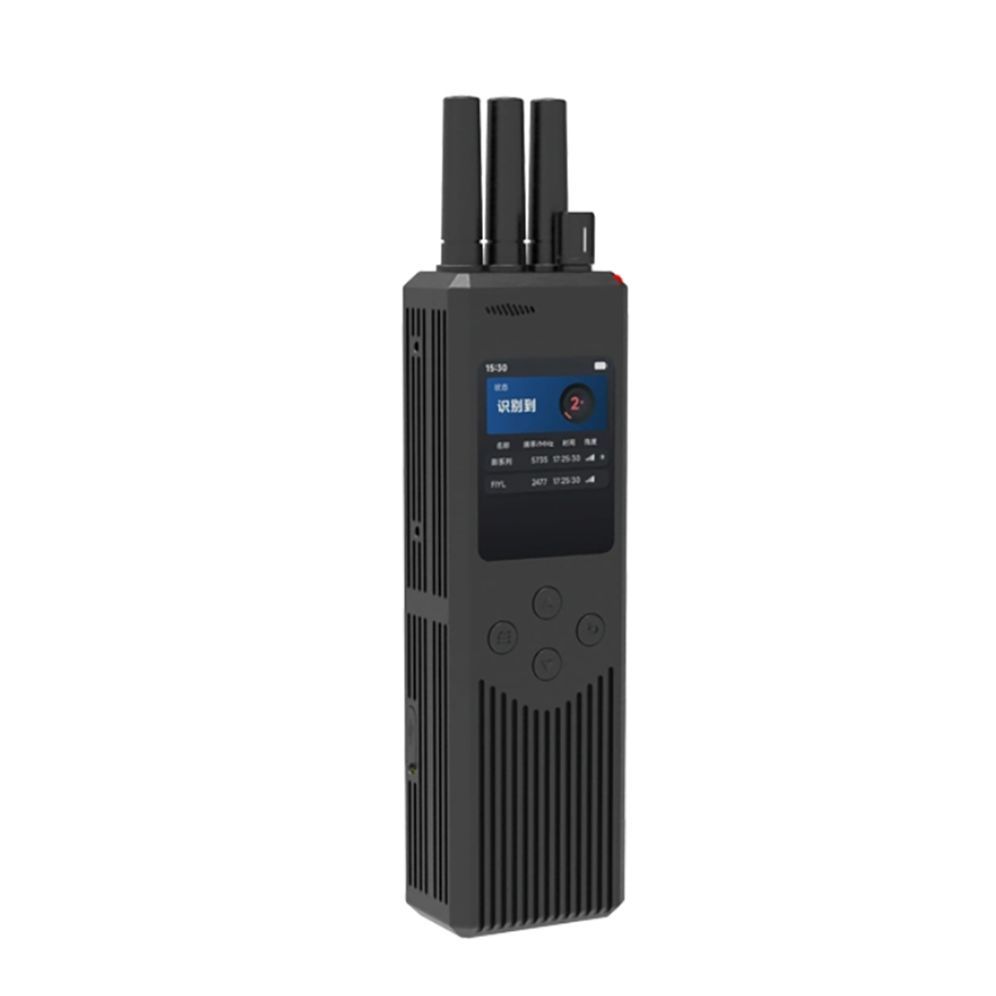

This is a handheld device for detection, identification and direction finding of drones. It identifies drone flight control and image transmission signals based on spectrum sensing and artificial intelligence technologies. Its features include: direction finding for Drones; detection of drones with full frequency bands and various types; long detection distance and low false alarm rate; large color screen display with rich display content; small size, light weight, hand-held and It can cooperate with anti-interference guns, and is suitable for security tasks in major events, industrial parks, border and coastal defense and other places.
Product Features
- Passive detection, no signal emission, no interference to the peripheral, environment friendly;
- Extremely portable, works alone or couple with a counter drone gun;
- Antennas of different frequency bands can be configured as required, and the antenna interface adopts a common standard, which is easy to disassemble and replace;
- Type-C charging interface, can use common Android phone charger;
- Drop proof, works well under extreme weather conditions;

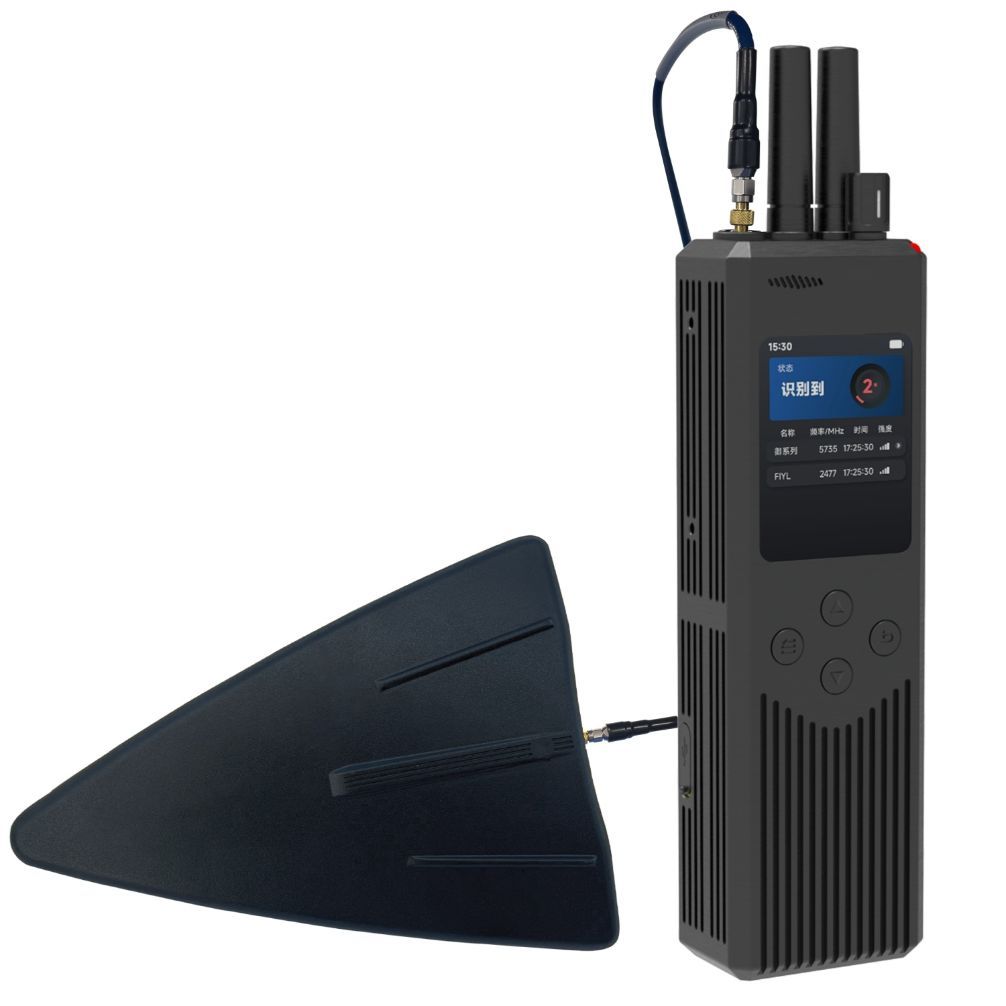

- Direction finding capability with the directional antenna.
| tem | Technical Parameters | |
| 1 | Operating mode | Passive detection |
| 2 | Drone models supported | DJI series drones,FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones etc. |
| 3 | Working frequency | 2.4GHz,5.8GHz |
| 4 | Detection range | 0-800 meters (urban environment, tested with DJI AIR2 as the target) |
| 5 | Azimuth | 0°~360°(omnidirectional antenna) |
| 6 | Recognition time | ≤2s |
| 7 | False alarm rate | ≤once/day(In an anechoic chamber environment) |
| 8 | Swarm detection | ≥10 concurrent drones |
| 1 | Operating mode | Directional passive detection |
| 2 | Action object | Some drones such as DJI (Phantom series and Yu series), Daotong and Hubson |
| 3 | Working frequency | 2.4GHz and 5.8GHz |
| 4 | Detection distance | 100-2000 meters (urban environment, tested with DJI AIR2 as the target) |
| 5 | Probe azimuth | ≤±17.5°(Target 1km away with frequency locked) |
Mechanical parameters
| 1 | size | L*W*H:235mm*66mm*43mm(the host) |
| 2 | weight | ≤800g(Antenna not included) |
| 3 | Battery life | ≥6 hours |
| 4 | Charging time | ≤3 hours (using the original charger) |
| 5 | Charging interface | Type-C |
Electrical characteristics
| 1 | Overall power consumption | ≤6W |
Environmental adaptability
| 1 | Operating temperature | -20ºC~55ºC |
| 2 | Protection Lever | IP54 |
Battery parameters
| 1 | Nominal capacity | 5Ah |
| 2 | Nominal voltage | 7.4V |
| 3 | Battery type | lithium battery |
Product Advantages:
- Real-time display of detailed drone information such as make, model, S/N, frequency, location (longitude, latitude, height) etc;
- Supports adjustment of detection sensitivity in four levels;
- Supports various alarm forms such as light, sound and sound and light, and the urgency of the alarm ringtone and the flashing frequency of the light are adjustable;
- Direction finding capability after switching to the directional antenna;
- Online update of drone library;
- Low battery level alarm;
- Multiple language optional;
- Reset the device to out-of-factory state;
- Storage and view of historical detection result data;
- View of drone library, including drone make, model and frequency;
- Signal strength display, the device can display the signal strength of the detected drone;
- Detected drones that can invoke direction-finding function will be marked;
- Once the device enters direction finding mode, the signal strength of the detected drone will be displayed, including maximum strength, instant strength and average strength.
